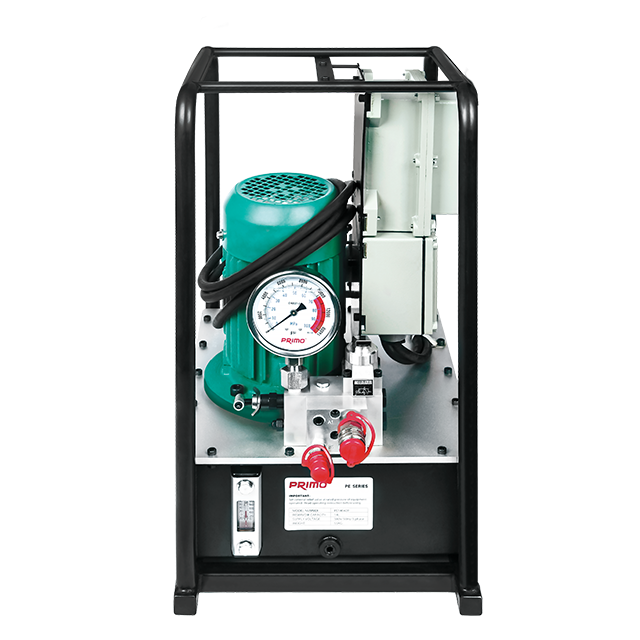

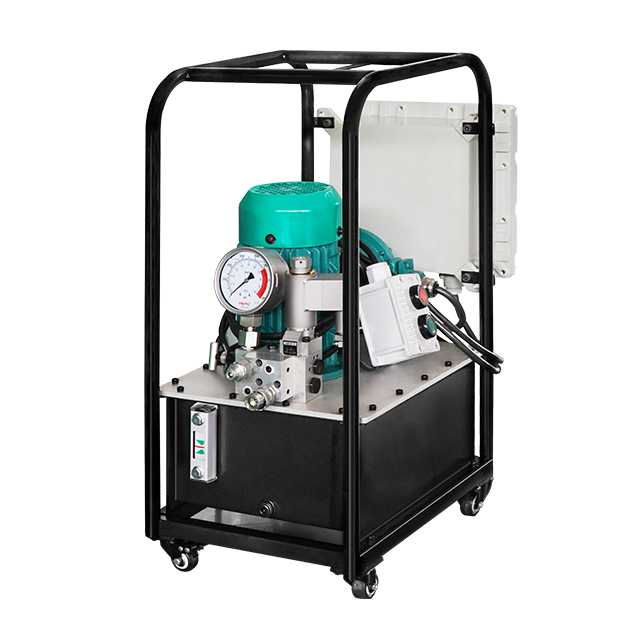

Explosion Proof Electric-Hydraulic Pump

Availability:
Quantity:
Inquire Add to Basket

PEX14042P防爆电动液压扳手泵 小


Features


  • EX d II BT4 three-phase motor applicable to explosion proof environment.

  • Large torque output and high efficiency

  • Electric control system adopts EXd II BT4 explosion proof electromagnetic starter

  • Advanced three stage flow with different flow and transmission torque to achieve the best match

  • Manual reversing valve, easy to operate

  • One pair quick coupling for standard configuration

  • Please specify in the order for two or four pairs of quick couplings


Model


Reservoir

Capacity

(L)


Motor

Size

(KW)

Supply


Output Flow

(L/min)


Max.Working

Pressure

(MPa)


Size(mm)

A× B×C


Weight

(kg)


Port

No.

PEX14042P1


14


1.1


380V/50Hz/

three-phase

8.0@0-6.5MPa,

1.8@6.5-32MPa,

0.85@32-70MPa


70


475×335×620


55

2

PEX14042P3

4

PEX14042Q1


14


1.1


380V/50Hz/three-phase

8.0@0-6.5MPa,

1.8@6.5-32MPa,

0.85@32-70MPa


70


475×335×620


55

2

PEX14042Q3

4
