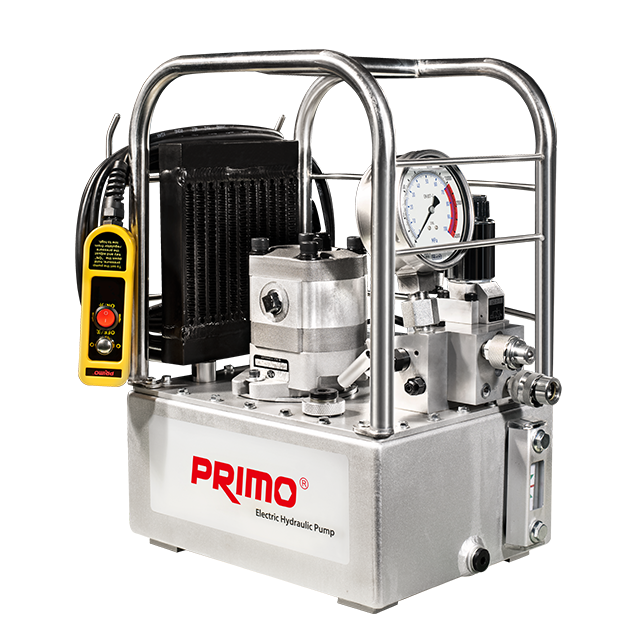

Hydraulic Motor Pump

Availability:
Quantity:

PY8042液压马达扳手泵 小


Features


  • Hydraulic wrench special pump, using integrated assembly, compact structure

  • With hydraulic motor as the power source, no power supply needed, suitable for hydraulic energy without power operating occasions

  • Remote control pendant for safety and easy operation

  • Easy to set target pressure, capable of pressure retention

  • Small size, light weight, simple structure

  • Supply both high and low oil pressure, large output

  • High performance oil cooler to ensure continuous work

  • Safety protection function, pump station automatic stop when abrupt pressure loss


液压马达扳手泵-液压马达

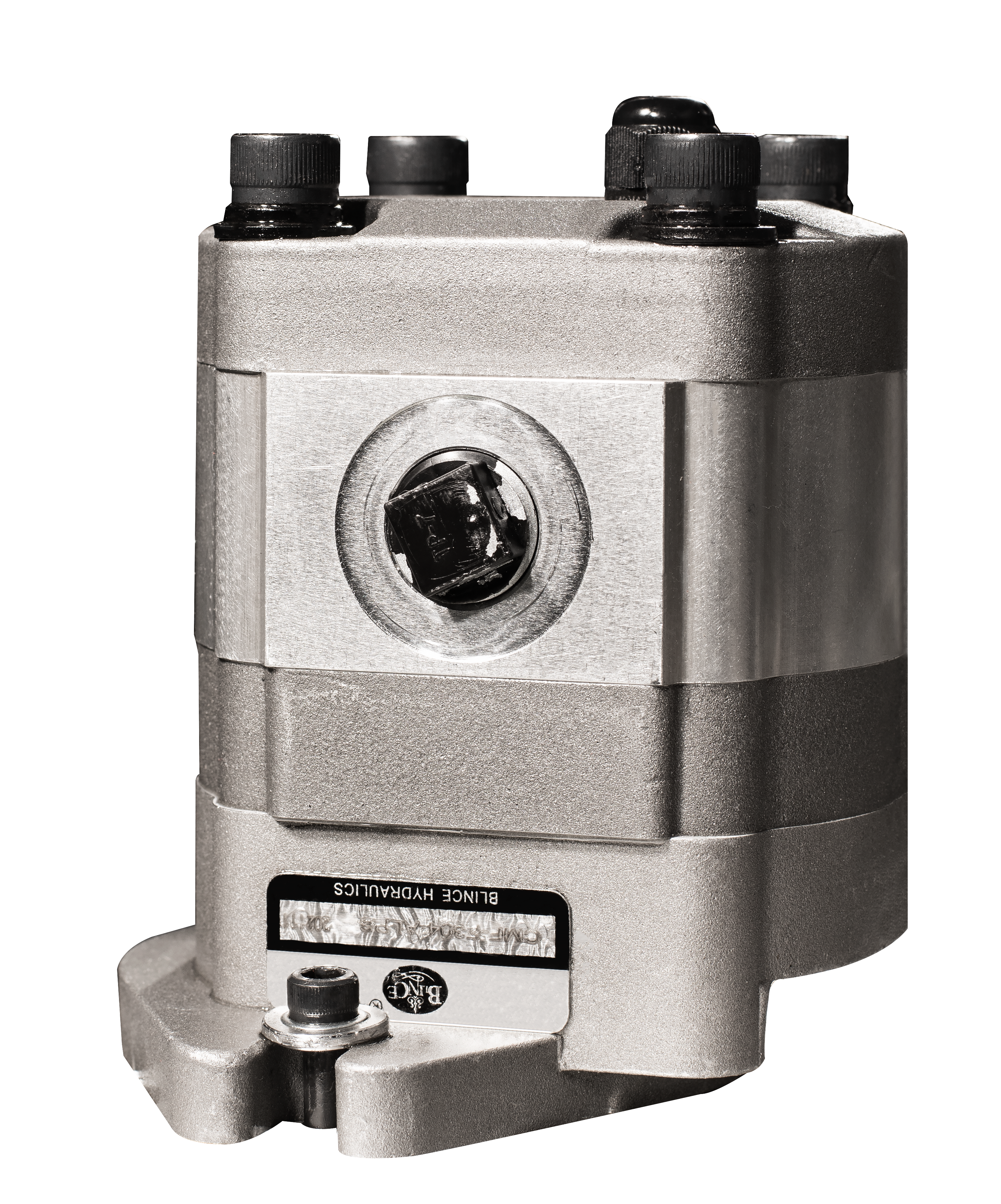

Hydraulic motor


液压马达扳手泵-遥控手柄

Ergonomic remote pendant,

comfortable, durable



Model


Reservoir

Capacity

(L)



Motor

Size

(KW)


Supply


Output Flow

(L/min)



Max.Working

Pressure

(MPa)



Size(mm)

A× B×C×D



Control

Line(m)



Weight

(kg)


PY8042

7

1.1

DC24V/3A

8.0@0-6.5MPa,

1.8@6.5-32MPa,

0.85@32-70MPa

70

375×300×410×155

6

18
