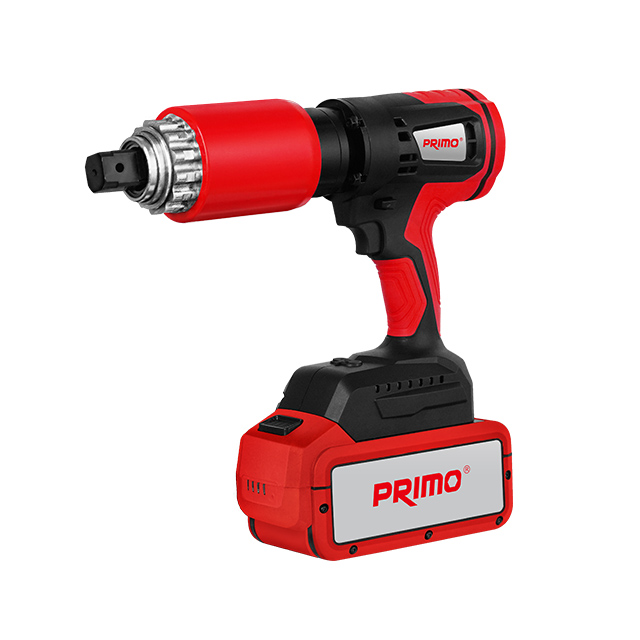

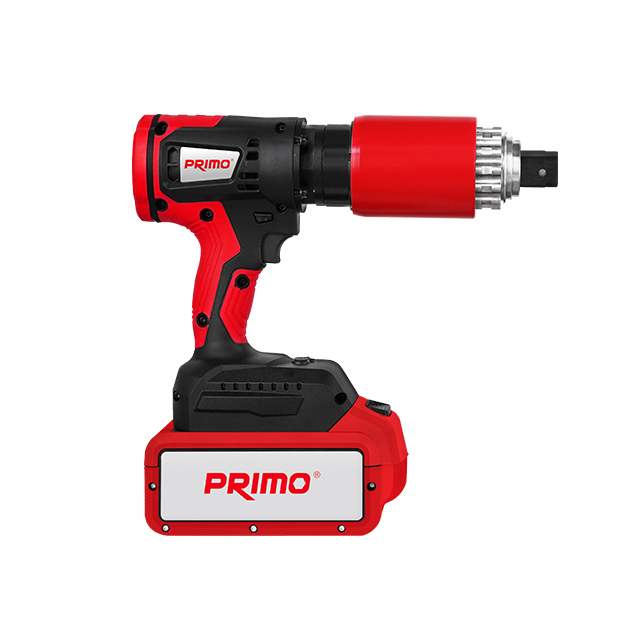

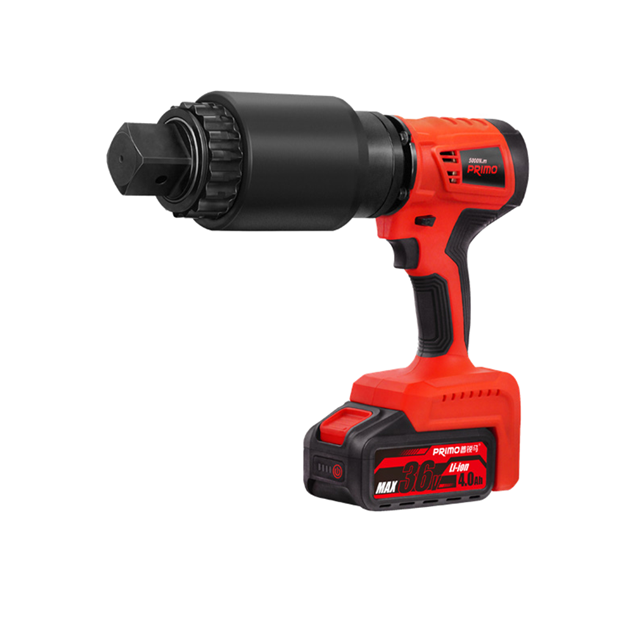

Lithium Electric Torque Wrench

Availability:
Quantity:
Inquire Add to Basket

1.Latest high-voltage and high-torque brushless motor .Max torque can be up to 4000Nm

2.The output accuracy of ± 3% is ensured by the monitoring system

3.Built in multiple working modes.High strength planetary gear reducer,high torque and light weight.

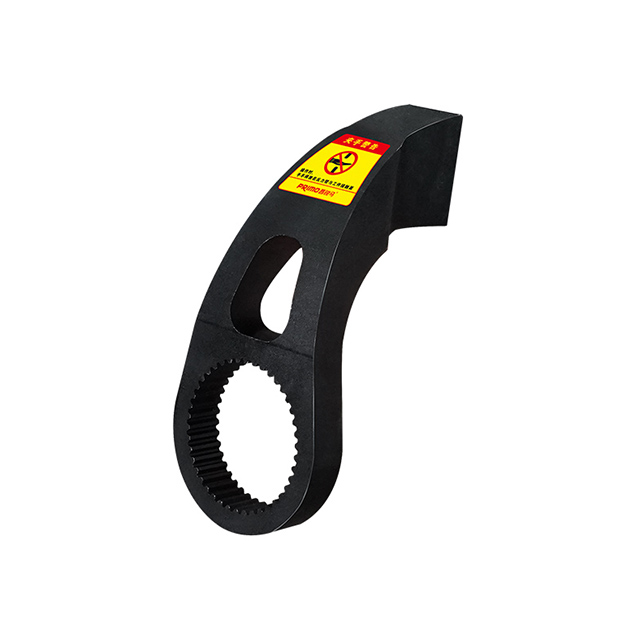

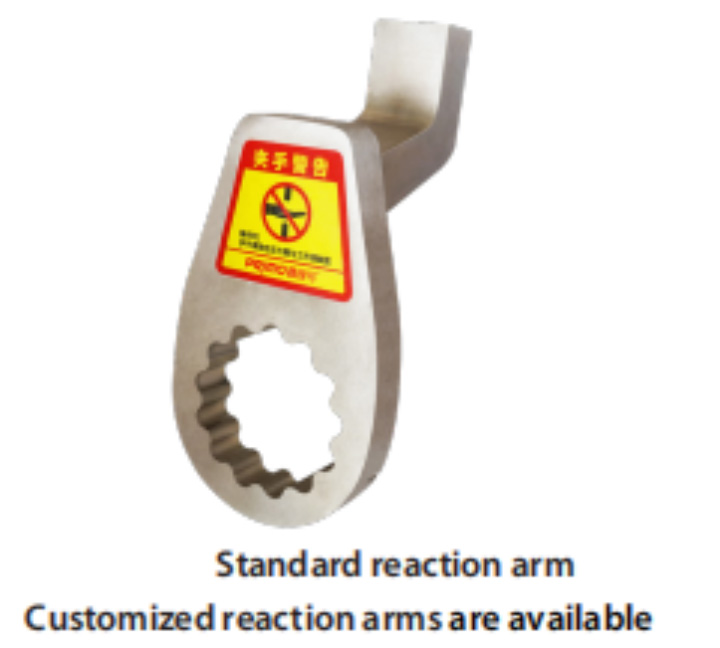

4.Automatic released reaction arm

5.Optional Bluetooth and WIFI technology, support bluetooth and smart

socket connection.

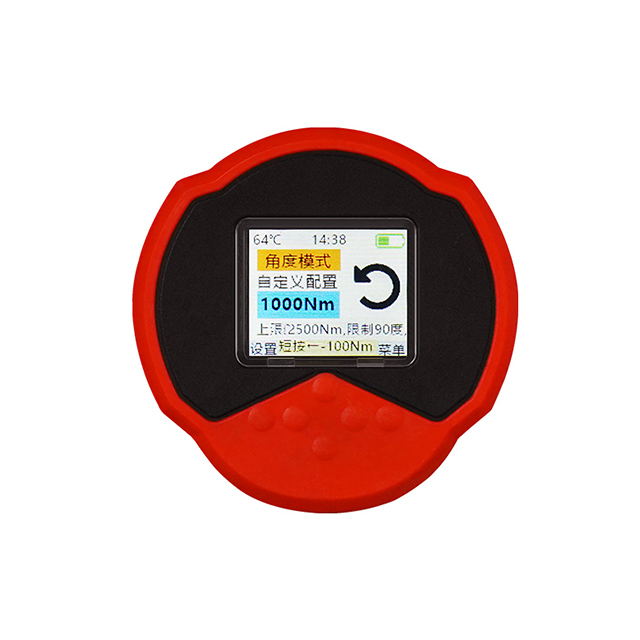

6.Intuitive OLED display screen

7.Powered by 36V/4Ah large capacity lithium battery, with great durability

8.Optional backpack type large capacity battery pack,adapt to high strength and continuous bolting operation.



001-PL2000,1300充电器图片28

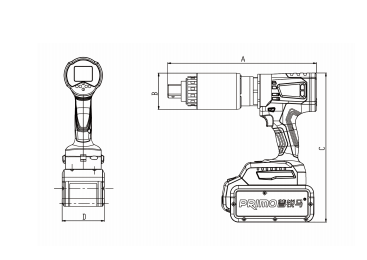

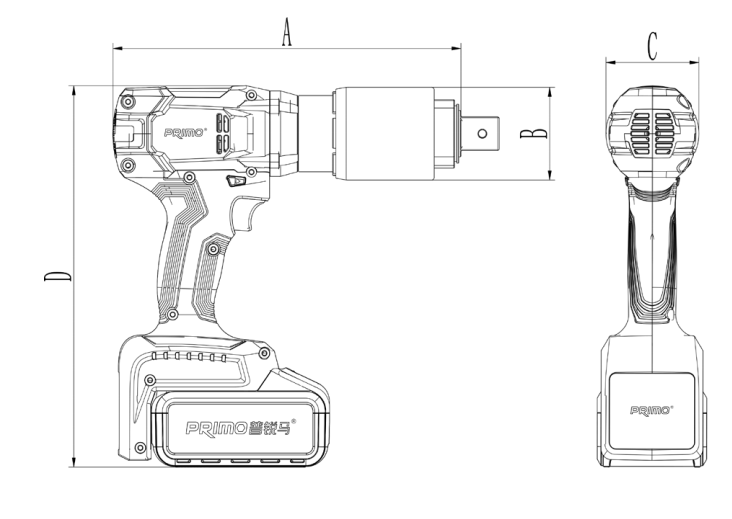

dimension


Model

Drive Shaft(in)

Torque Range(NM)

Speed(rpm)

Weight(kg)

Size A X B X CX D (mm)
PL6000           1 1/2         1200-6000                2.0        10.5
 318 ×99 ×80×294
PL5000           1 1/2         1000-5000                2.0        10.5  318 ×99 ×80×294

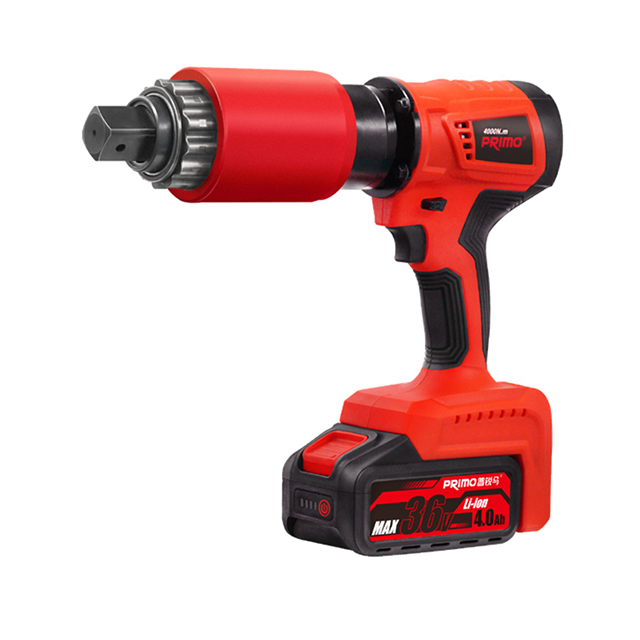

PL4000 1 800-4000 3.2 7.1 305 ×81 ×78×294

PL3000

1

600-3000

3.2

7.1

 305 ×81 ×78×294
PL2000

1

400-2000

 6
 5.3 269 ×70 ×71×288
PL1400 3/4 280-1400 6 5.2 269 ×70 ×71×288
PL700 3/4 140-700 13.8
 4.7 241 ×70 ×71×288
PL500 3/4 100-500 13.8 4.7 241 ×70 ×71×288
