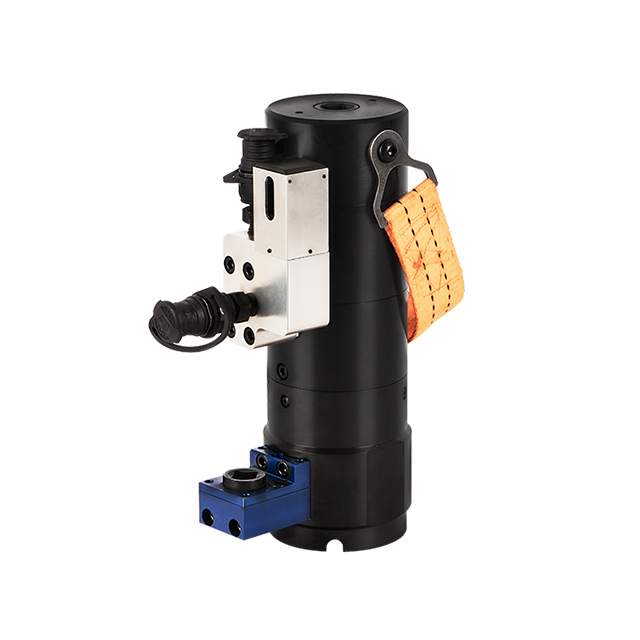

PDT Hydraulic Bolt Tensioner

Availability:
Quantity:
Inquire Add to Basket

1.Working pressure 135MPa.

2.Fast,simple,accurate,reliable,it is the ideal bolting tools for wind turbine.Suitable for tight spaces.

3.Small,compact,large load

4.Durable composite material seal kit.

5.Clear over stroke alarming mark.

6.Optional counter,to display the tensioner operation times.

7.The bridge height can be customized according to the customer's site conditions.

8.Output accuracy±2%，repeatable accuracy 2%.


Model

Bolt Size

Min.thread length

Max.thread length

Stroke

Bolt Distance

Max.Load

Outside
Diameter

Min. Height

metric(mm)

imperial(in)

(mm)

(mm)

(mm)

(mm)

(KN)

(mm)

(mm)

PDT-M30

M30

1-1/8

62

69

7

66

461

75

276

PDT-M33

M33

1-1/4

66

73

9

72

550

82

295

PDT-M36

M36

1-3/8

75

82

9

77

658

88.5

326

PDT-M39

M39

1-1/2

78

88

10

83

804

98

360

PDT-M42

M42

1-5/8

83

91

10

89

923

101

357

PDT-M45

M45

1-3/4

87

96

10

96

1091

105

371

PDT-M48

M48

1-7/8

93

102

10

102

1220

115

387

PDT-M52

M52

2

100

110

10

107

1655

129

428

PDT-M56

M56

1-1/4

108

119

10

120

1984

138

452
