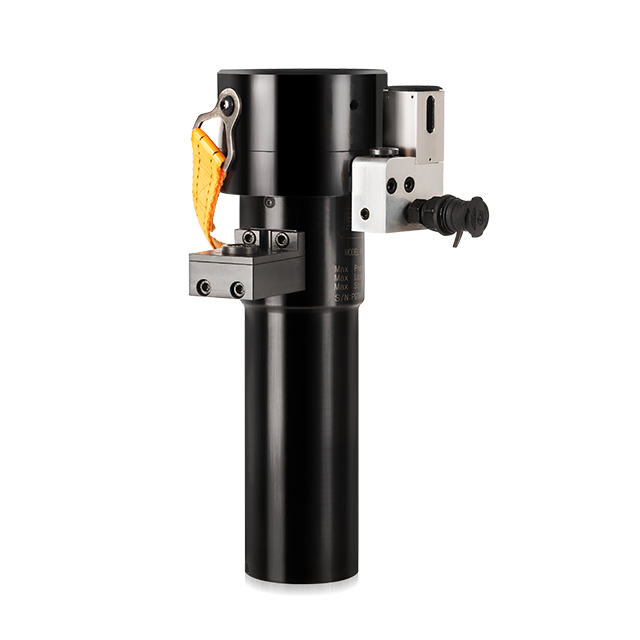

PGT Hydraulic Bolt Tensioner

Availability:
Quantity:
Inquire Add to Basket

PGT-新图 小

Features


  • Made of high strength steel，Solid and reliable

  • High quality seal kit ensures no leakage

  • Applicable of all international flange standards

  • Over stroke safety device

  • Easy operation and maintenance

  • Output accuracy ±2%，repeatable accuracy 2%


Specification



Model

Bolt Diameter

The Min,Length of Thread

(mm)

The Max.Length of Thread

(mm)

Working stroke

(mm)

Bolt Distance

(mm)

Max.Load

(KN)

Outside Diameter

(mm)

Min.Height

(mm)


(mm)


(in)

PGT-M30

M30

1- 1/8

62

69

10

70

460

97

200

PGT-M33

M33

1- 1/4

66

73

10

76

570

106

209

PGT-M36

M36

1-3/8

75

82

10

82

670

117

234

PGT-M39

M39

1- 1/2

78

88

10

90

800

125

226

PGT-M42

M42

1-5/8

83

91

10

94

920

134

234

PGT-M45

M45

1-3/4

87

96

10

96

1080

148

243

PGT-M48

M48

1-7/8

93

102

10

102

1220

158

273

PGT-M52

M52

2

102

114

10

107

1450

170

277

PGT-M56

M56

2- 1/4

108

123

10

115

1680

181

304
