PIT Hydraulic Bolt Tensioner

Availability:
Quantity:
Inquire Add to Basket

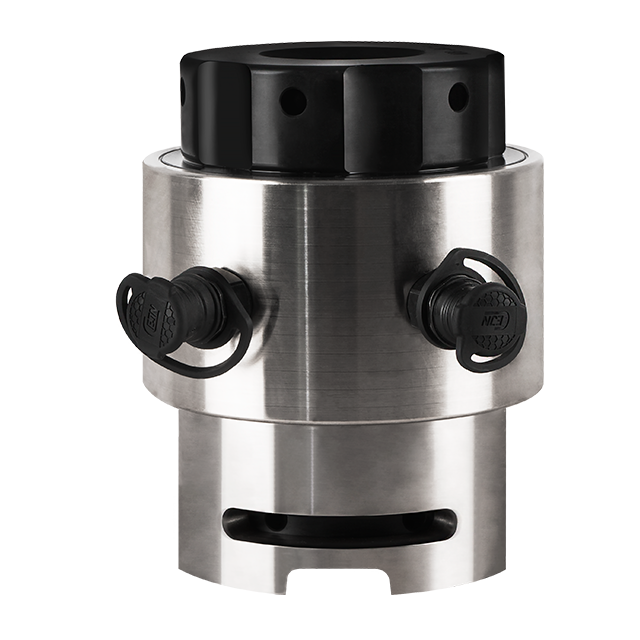

DSC01328- 小

Features


  • Working pressure 150MPa

  • Unique seal design allows for piston and cylinder misalignment compensation

  • Piston stroke of PIT1 is 8mm, for other model it is 10mm

  • Built-in stroke limit valve prevents over stroke

  • Fully enclosed bridge to prevent debris from entering the tensioner body

  • Spring return, strong and fast, ensure safe return

  • Output accuracy ±2%, repeatable accuracy 2%


Specification


Model

Stretcher Model

Max.Load

(KN)

Hyd.Area

(mm2)

Weight(kg)

PIT1

PIT1-M20

PIT1-M22

160

1067

1.4

PIT2

PIT2-M24

PIT2-M27

280

1867

2.7



PIT3

PIT3-M24

PIT3-M27

PIT3-M30

PIT3-M33

PIT3-M36



450



3001



4.1


PIT4

PIT4-M33

PIT4-M36

PIT4-M39

PIT4-M42


660


4401


5.4


PIT5

PIT5-M39

PIT5-M42

PIT5-M45

PIT5-M48


1000


6668


8.4


PIT6

PIT6-M52

PIT6-M56

PIT6-M60

PIT6-M64


1500


10003


13.8


PIT7

PIT7-M68

PIT7-M70

PIT7-M72


2000


13334


18.4


PIT8

PIT8-M76

PIT8-M80

PIT8-M85

PIT8-M90


2500


16671


23


PIT9

PIT9-M90

PIT9-M95

PIT9-M100


3200


21339


32


PIT10

PIT10-M105 PIT10-M110 PIT10-M115


4100


27340


45
