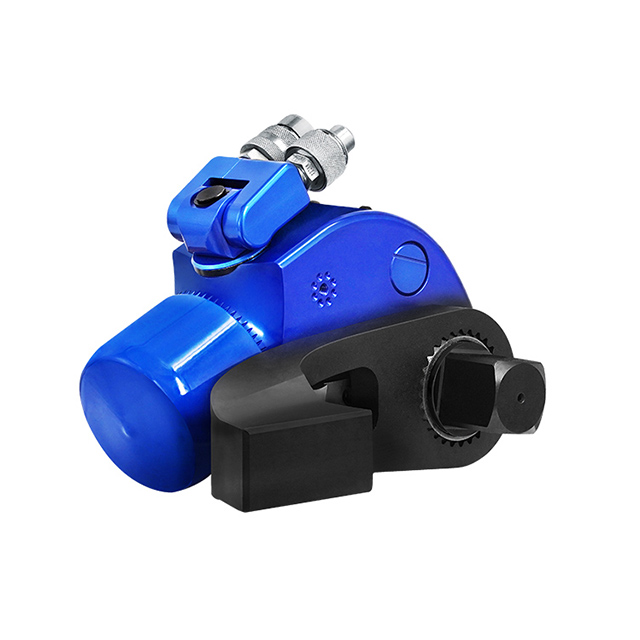

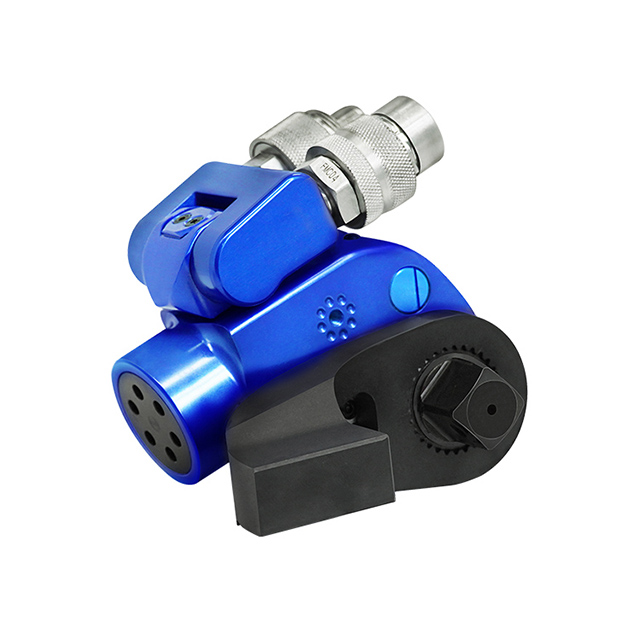

PMT Series Hydraulic Torque Wrench

Availability:
Quantity:
Inquire Add to Basket

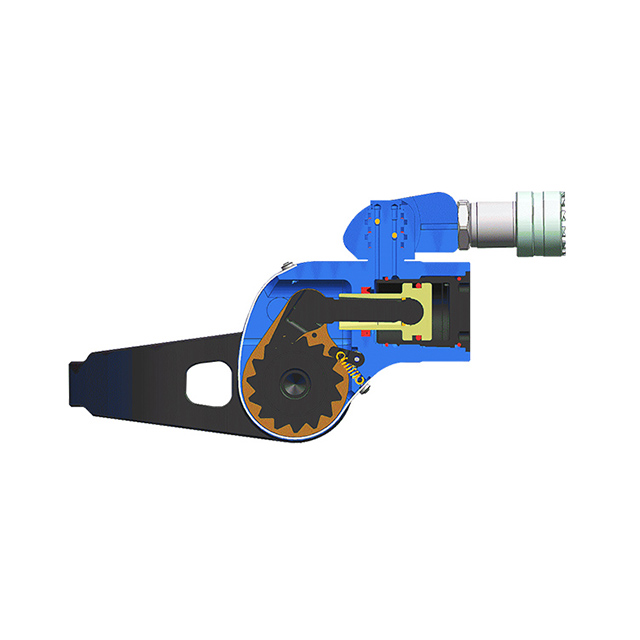

1. Coarse-toothed ratchet and pawl，sufficient safe redundancy at full load

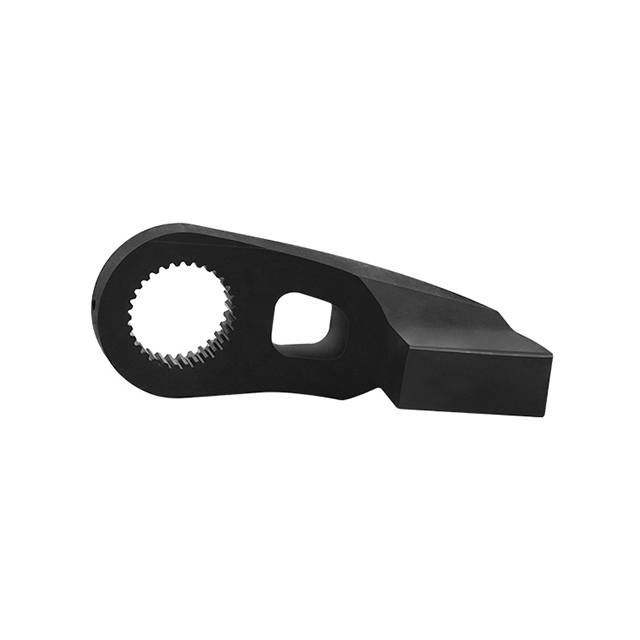

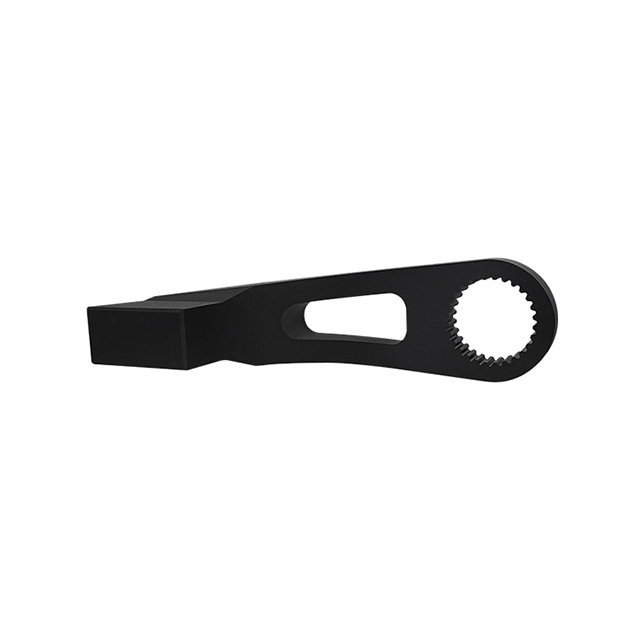

2. The new coaxial reaction arm design reduces the offload bending moment, can provide more accurate actual torque

3. Can be equipped with rear reaction lever for higher efficiency, compatible with standard and stretch sleeve.

4. Constructed from higher strength materials for stronger, more wear-resistant and highly repeatable precision performance

5.Compact body with 360°×180° hose swivel, applicable to a variety of applications

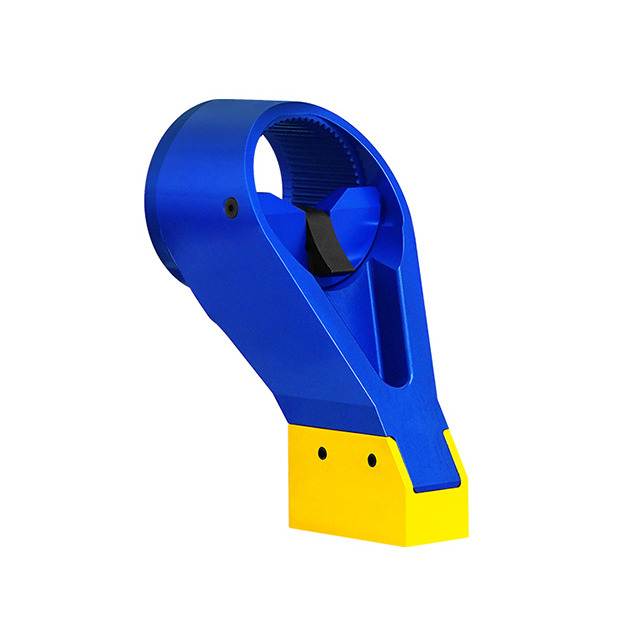

6.Dual reaction lever function, accommodates both coaxial reaction lever and rear reaction lever.



Specification

Model

Square Drive size(in)

Min. Torque(Nm)

Max. Torque(Nm)

Output accuracy

Repeat Accuracy

weight(Kg)

PMT-0.7

3/4

102

1022

±3%

2%

2.1

PMT- 1

3/4

181

1816

±3%

2%

3.1

PMT-3

1

437

4377

±3%

2%

3.4

PMT-5

1-1/2

716

7165

±3%

2%

8.4

PMT- 10

1-1/2

1561

15610

±3%

2%

11.3

Model

H(mm)

W(mm)

L(mm)

R(mm)

PMT-0.7

111

45.3

102.8

25

PMT- 1

162

55

131

30

PMT-3

206

74

169

38

PMT-5

235

86

204

47

PMT- 10

297

110

255

60
