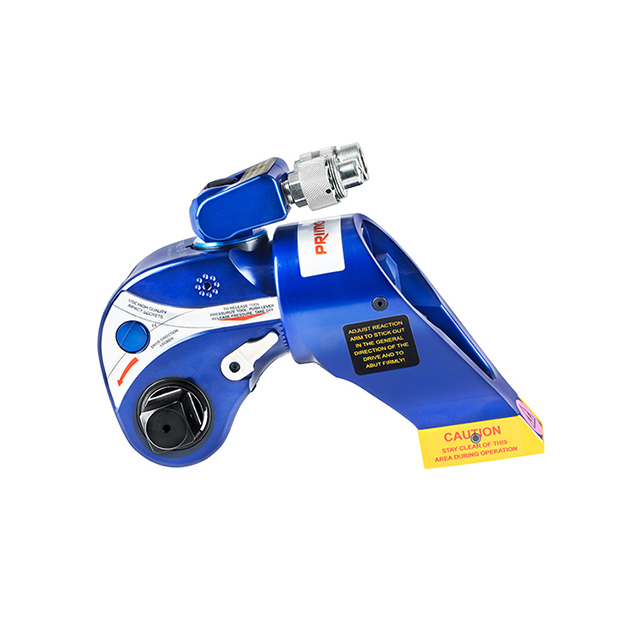

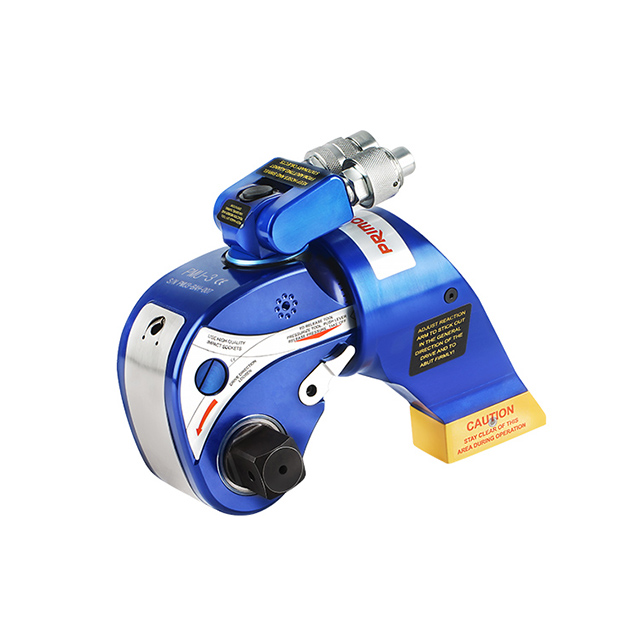

PMU Series Square Drive Hydraulic Wrench

Availability:
Quantity:
Inquire Add to Basket

Features


  • Coarse-toothed ratchet and pawl, sufficient safe redundancy at full load,

  • 2. Uni-body design, constructed from aviation Al-Ti alloy with high strength and light weight .

  • 3. 360︒/180︒ swivel, 360︒reaction arm, easy to use in all kinds of complicated applications

  • 4. Reaction pawl prevents reverse caused by bolts elastic deformation

  • “Click” sounds in each stroke for easy operation

  • 5. Spherical cooperated piston and drive arm, no eccentric load. High

  • seal kit for long life and no leakage.

  • 6. Special reaction pawl prevents reverse movement




Specification

Model

Square Drive(in)

Metric Bolt

Min.Torque(Nm)

Max.Torque(Nm)

Output Accuracy

Repeat Accuracy

Weight(kg)

PMU- 1

3/4

M8-M30

182

1820

±3%

2%

1.8

PMU-3

1

M16-M42

425

4250

±3%

2%

3.8

PMU-5

1-1/2

M20-M48

741

7415

±3%

2%

6.5

PMU-8

1-1/2

M22-M52

1047

10470

±3%

2%

11.8

PMU- 10

1-1/2

M22-M56

1500

15000

±3%

2%

14.9

PMU- 15

2-1/2

M39-M68

2135

21351

±3%

2%

16.4

PMU-20

2-1/2

M48-M80

2678

26785

±3%

2%

19.7

PMU-25

2-1/2

M52-M90

3509

35096

±3%

2%

32

PMU-35

2-1/2

M64-M120

5160

51600

±3%

2%

43

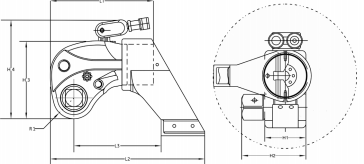

Model

L1(mm)

L2(mm)

L3(mm)

H1(mm)

H2(mm)

H3(mm)

H4(mm)

R1(mm)

PMU- 1

124

186

105

50

72

93

125

25

PMU-3

161

243

135

67

97

124

156

33

PMU-5

194

293

163

80

125

149

183

40

PMU-8

234

319

177

90

132

168

223

43

PMU- 10

242

365

202

100

143

186

224

50

PMU- 15

268

401

233

111

173

205

245

55

PMU-20

294

444

248

120

180

223

260

60

PMU-25

313

461

251

137

200

247

296

66

PMU-35

348

550

316

153

218

281

335

76

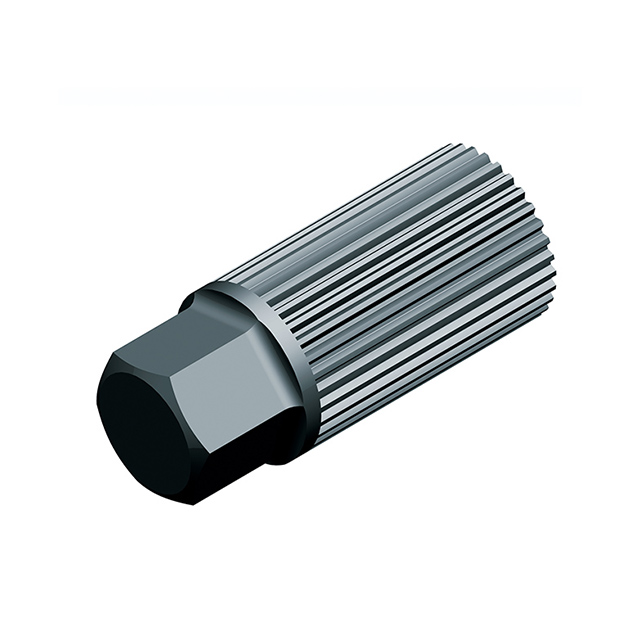

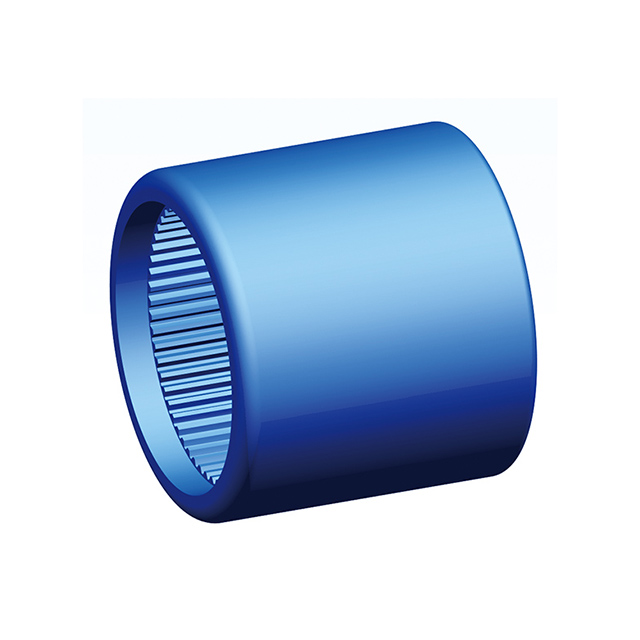

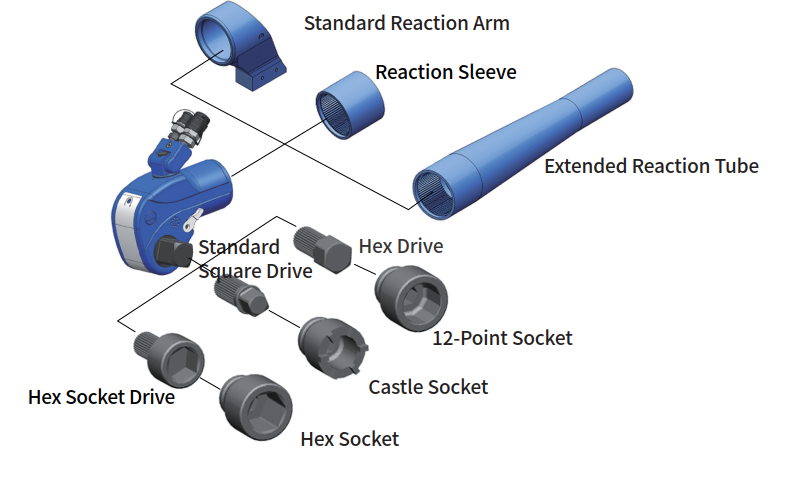

Accessories
