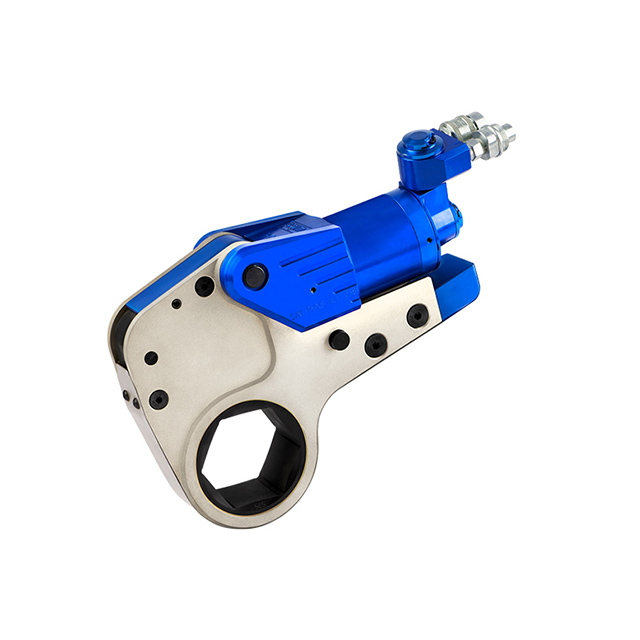

PMX Series Low Clearance Hydraulic Torque Wrench

Availability:
Quantity:
Inquire Add to Basket

1.Constructed from high strength alloy with light weight, high torque ratio.

2.Slim body design fits for various tight spaces.

3.Anti-corrosive treated surface applicable for harsh environment .

4.The wrench head is equipped with copper sleeve which makes it more wear-resistant, non-stuck and high torque precision.

5.Power head connects to the wrench head through a hook, no risk of dislodging the wrench head.

6.Solid single link pin makes symmetrical load of both side plates.

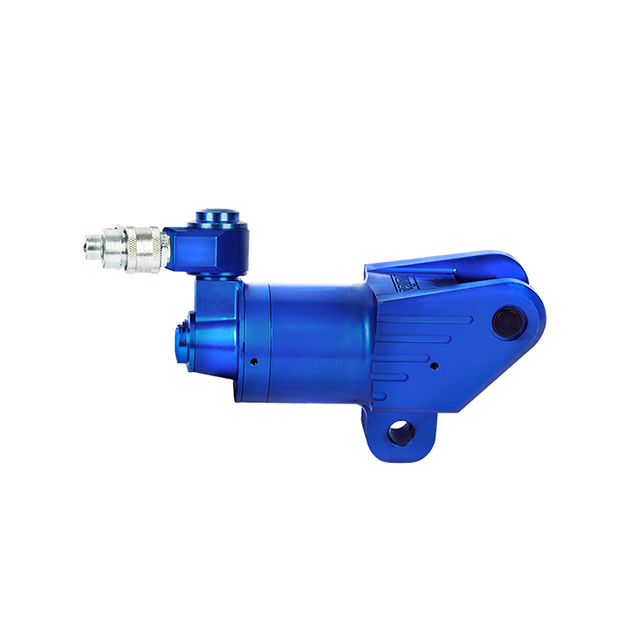

PMX power head

Model

Range of Hex A/F(in)

Range of Hex A/F(mm)

Min.Torque(Nm)

Max.Torque(Nm)

Power head weight(Kg)

Hex Link Weight(Kg)

Output accuracy

Repeat Accuracy

PMX-2

3/4~2-3/8

19-60

228

2287

0.9

1.5

±3%

2%

PMX-4

1-7/16~3- 1/8

36-80

522

5226

1.7

3.4

±3%

2%

PMX-8

1- 13/16~3- 11/16

46- 105

1104

11049

3

6.3

±3%

2%

PMX- 14

2-3/8~4-5/8

60- 120

1816

18165

4.6

11.4

±3%

2%

PMX-30

3- 1/2~5-3/4

90- 155

4200

42005

10.4

20.5

±3%

2%

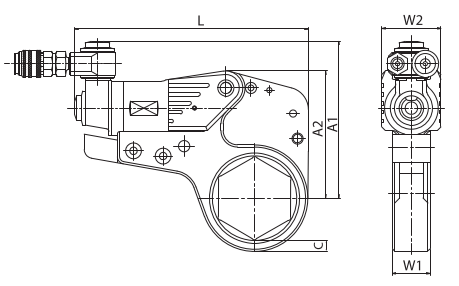

Model

L(mm)

A1(mm)

A2(mm)

W1(mm)

W2(mm)

C(mm)

PMX-2

194

136

103

32

50

9.8- 12.6

PMX-4

258

172

137

42

66

12.5- 13. 1

PMX-8

312

200

170

53

83

16- 16.7

PMX- 14

373

242

205

63

99

17.6- 18.9

PMX-30

478

312

272

83

132

24.4-26.2


Wrench head

Metric

PMX-2

PMX-4

PMX-8

PMX-14

PMX-30

Model

Hex Size A/F(mm)

Model

Hex Size A/F(mm)

Model

Hex Size A/F(mm)

Model

Hex Size A/F(mm)

Model

Hex Size A/F(mm)

PMXL2- 19

19

PMXL4-36

36

PMXL8-46

46

PMXL14-60

60

PMXL30-90

90

PMXL2-22

22

PMXL4-41

41

PMXL8-50

50

PMXL14-65

65

PMXL30-95

95

PMXL2-24

24

PMXL4-46

46

PMXL8-55

55

PMXL14-70

70

PMXL30- 100

100

PMXL2-27

27

PMXL4-50

50

PMXL8-60

60

PMXL14-75

75

PMXL30- 105

105

PMXL2-30

30

PMXL4-55

55

PMXL8-65

65

PMXL14-80

80

PMXL30- 110

110

PMXL2-32

32

PMXL4-60

60

PMXL8-70

70

PMXL14-85

85

PMXL30- 115

115

PMXL2-36

36

PMXL4-65

65

PMXL8-75

75

PMXL14-90

90

PMXL30- 120

120

PMXL2-41

41

PMXL4-70

70

PMXL8-80

80

PMXL14-95

95

PMXL30- 130

130

PMXL2-46

46

PMXL4-75

75

PMXL8-85

85

PMXL14- 100

100

PMXL30- 145

145

PMXL2-50

50

PMXL4-80

80

PMXL8-90

90

PMXL14- 105

105

PMXL30- 150

150

PMXL2-55

55

PMXL8-95

95

PMXL14- 110

110

PMXL30- 155

155

PMXL2-60

60

PMXL8- 100

100

PMXL14- 115

115





PMXL8- 105

105

PMXL14- 120

120


Imperial

PMX-2

PMX-4

PMX-8

PMX-14

PMX-30

Model

Hex Size A/F(in)

Model

Hex Size A/F(in)

Model

Hex Size A/F(in)

Model

Hex Size A/F(in)

Model

Hex Size A/F

(in)

PMXL2-3/4

3/4

PMXL4- -7/16

1-7/16

PMXL8-1- 3/16

1- 13/16

PMXL14-2-3/8

2-3/8

PMXL30-3- 1/2

3- 1/2

PMXL2-7/8

7/8

PMXL4- 1-5/8

1-5/8

PMXL8-2

2

PMXL14-2-9/16

2-9/16

PMXL30-3- 11/16

3- 11/16

PMXL2-1- 1/16

1- 1/16

PMXL4-1- 3/16

1- 13/16

PMXL8-2-3/16

2-3/16

PMXL14-2-3/4

2-3/4

PMXL30-3-7/8

3-7/8

PMXL2-1-3/16

1-3/16

PMXL4-2

2

PMXL8-2-3/8

2-3/8

PMXL14-2-15/16

2- 15/16

PMXL30-4-1/8

4- 1/8

PMXL2- 1- 1/4

1- 1/4

PMXL4-2-3/16

2-3/16

PMXL8-2-9/16

2-9/16

PMXL14-3- 1/8

3- 1/8

PMXL30-4- 1/4

4- 1/4

PMXL2-1-7/16

1-7/16

PMXL4-2-3/8

2-3/8

PMXL8-2-3/4

2-3/4

PMXL14-3- 1/2

3- 1/2

PMXL30-4-5/8

4-5/8

PMXL2- 1-5/8

1-5/8

PMXL4-2-9/16

2-9/16

PMXL8-2-5/16

2- 15/16

PMXL14-3-11/16

3- 11/16

PMXL30-5

5

PMXL2-1- 3/16

1- 13/16

PMXL4-2-3/4

2-3/4

PMXL8-3- 1/8

3- 1/8

PMXL14-3-7/8

3-7/8

PMXL30-5-3/8

5-3/8

PMXL2-2

2

PMXL4-2- 15/16

2- 15/16

PMXL8-3- 1/2

3- 1/2

PMXL14-4- 1/8

4- 1/8

PMXL30-5-3/4

5-3/4

PMXL2-2-3/16

2-3/16

PMXL4-3- 1/8

3- 1/8

PMXL8-3- 11/16

3- 11/16

PMXL14-4- 1/4

4- 1/4

PMXL2-2-3/8

2-3/8



PMXL14-4-5/8

4-5/8

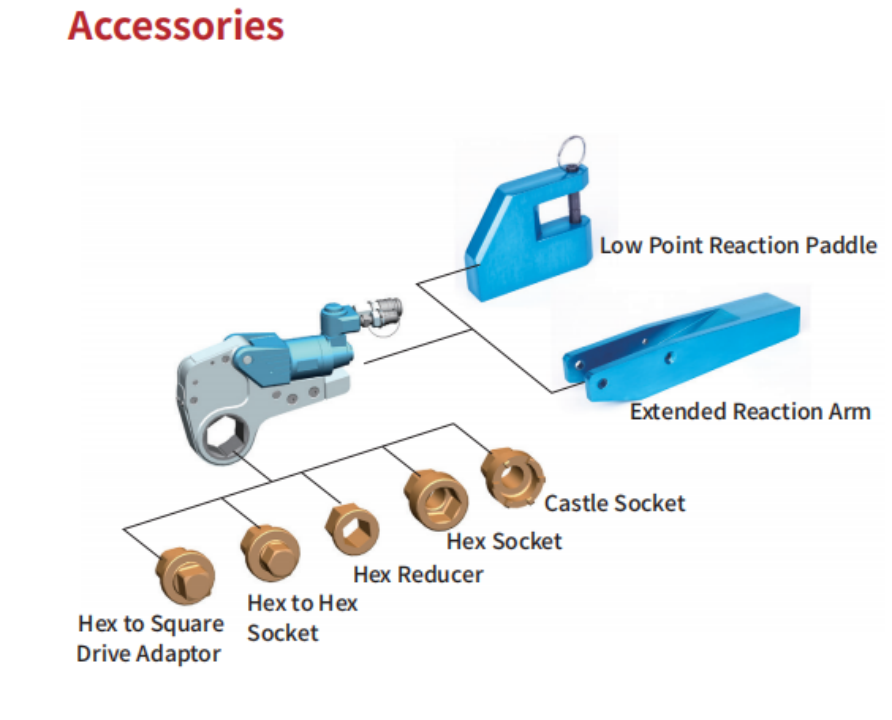

Accessories
