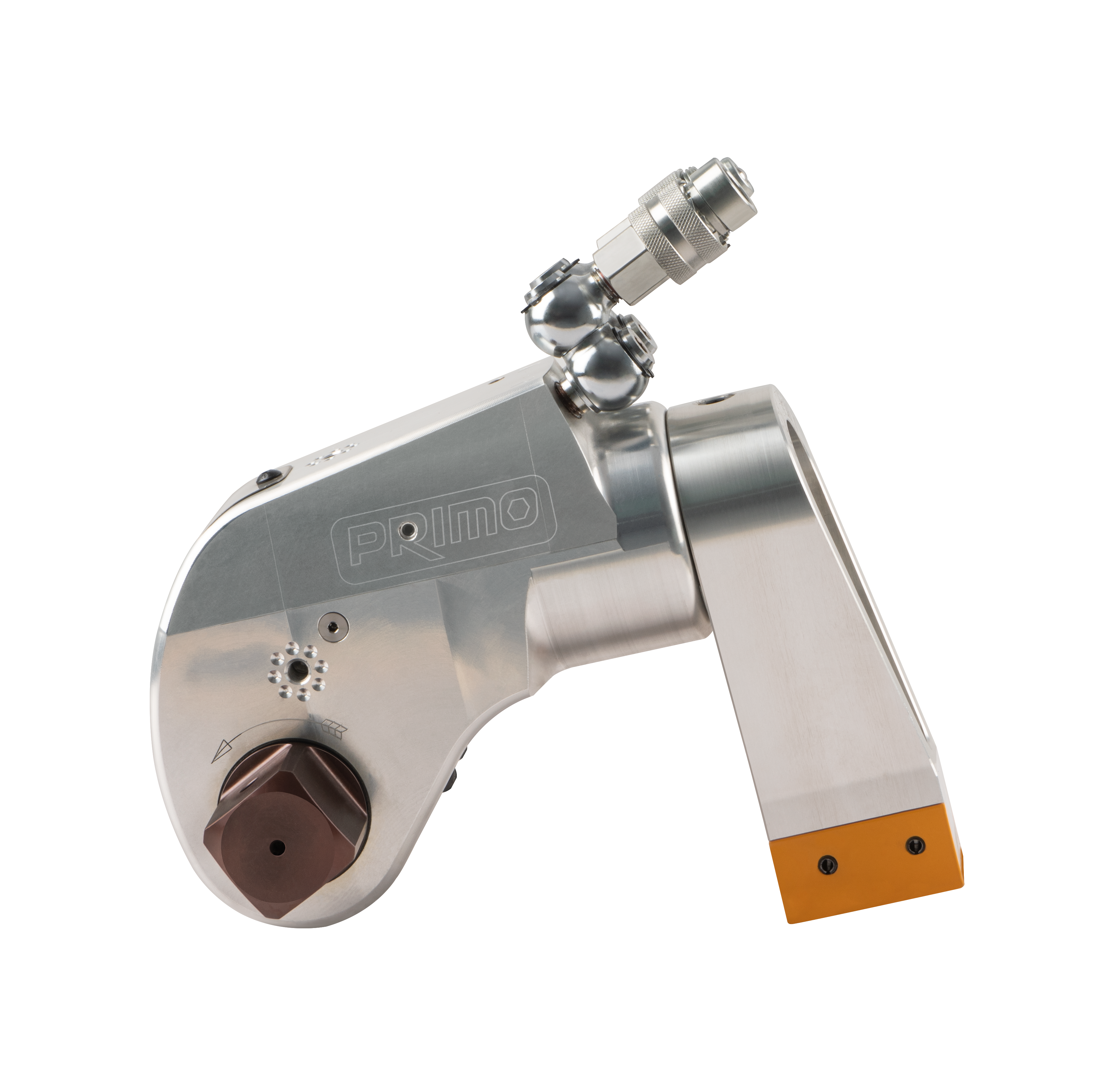

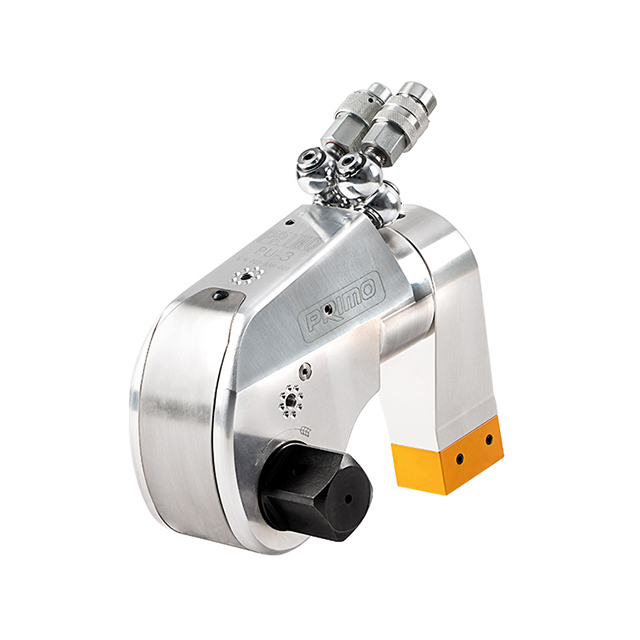

PU Series Square Drive Hydraulic Torque Wrench

Availability:
Quantity:
Inquire Add to Basket

1. Square drive made of high-strength alloy possesses long life

2. No reaction pawl, the tools won't stuck

3. 27︒each stroke provides high performance and high-speed

4. Compact uni-body made of aviation material for high strength, light weight and high torque weight ratio

5. Accuracy ±3％

6. Slim body design for easy operation in tight spaces

7. Anti-corrosive treated surface, applicable for hash environments




Specification

Model

Square Drive(in)

Metric Bolt

Min.Torque(Nm)

Max.Torque(Nm)

Output Acuracy

Repeat Accuracy

Weight(kg)

PU-2

3/4

M8-M30

181

1813

±3%

2%

2.1

PU-3

1

M16-M42

451

4514

±3%

2%

4.8

PU-5

1-1/2

M20-M48

733

7335

±3%

2%

7.2

PU-7

1-1/2

M22-M56

1050

10500

±3%

2%

9.3

PU- 10

1-1/2

M42-M72

1481

14810

±3%

2%

13.8

PU-20

2-1/2

M48-M80

2715

27150

±3%

2%

28.1

PU-27

2-1/2

M52-M90

3745

37450

±3%

2%

31.8

PU-36

2-1/2

M64-M120

5160

51600

±3%

2%

43.7

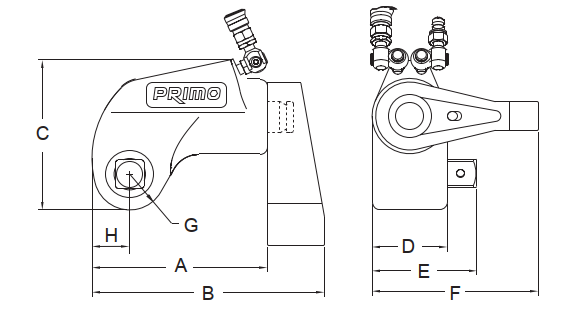

Model

A(mm)

B(mm)

C(mm)

D(mm)

E(mm)

F(mm)

G(mm)

H(mm)

PU-2

128

167

108

51

71

117

26

28

PU-3

158

208

134

67

94

148

33

35

PU-5

190

250

163

82

128

180

40

43

PU-7

215

285

182

92

136

203

45

48

PU-10

240

316

205

103

159

228

51

54

PU-20

285

376

341

123

184

270

60

64

PU-27

323

425

265

134

193

302

66

74

PU-36

348

549

335

158

218

330

76

80

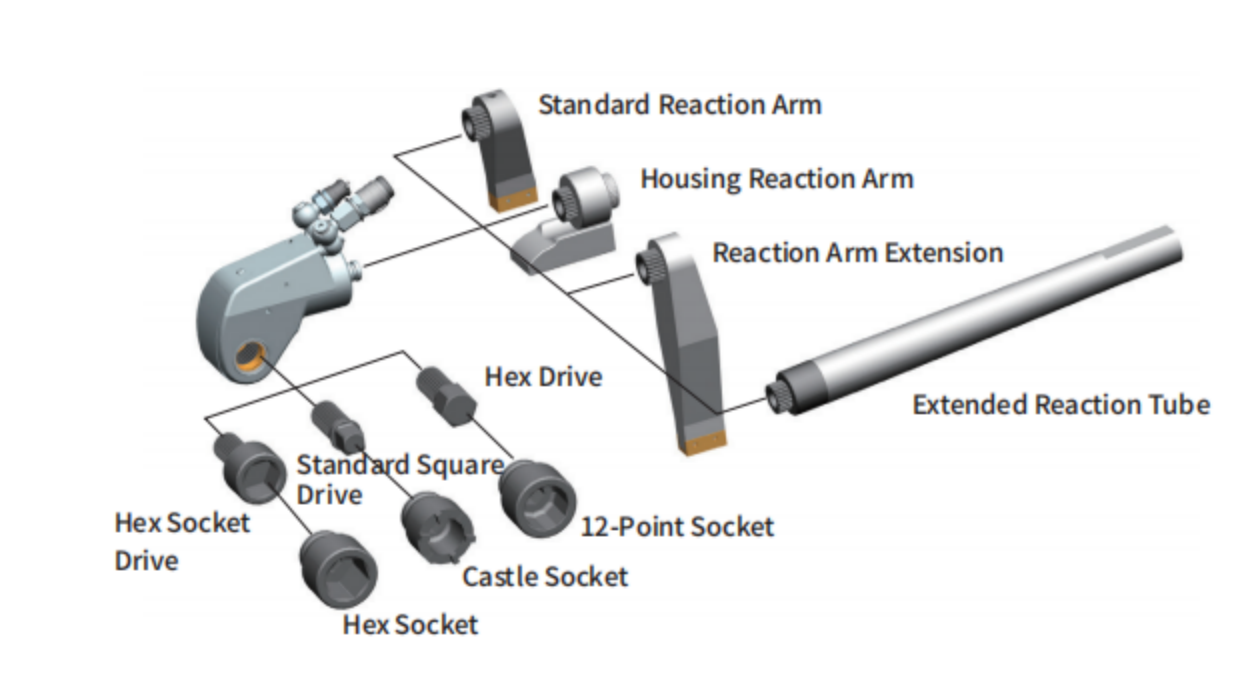

Accessories
