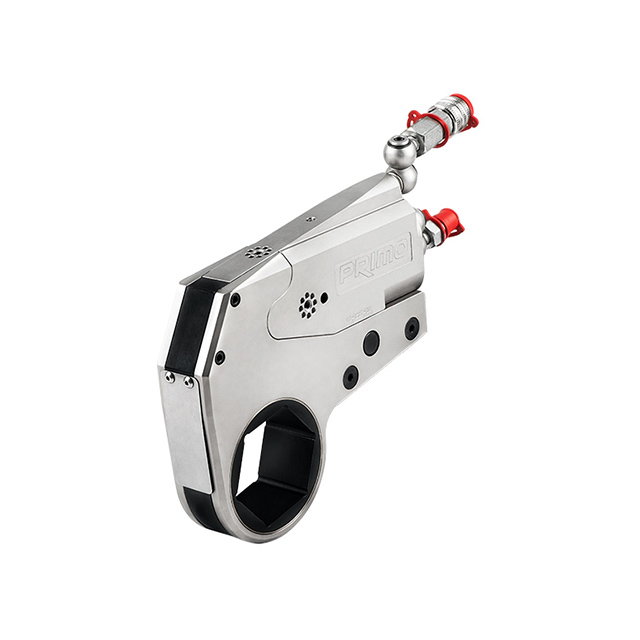

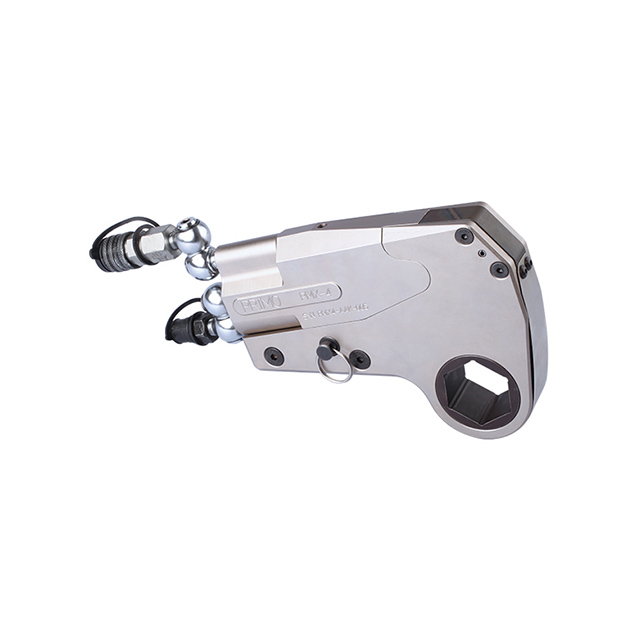

PX Low Clearance Hydraulic Torque Wrench

Availability:
Quantity:
Inquire Add to Basket

1. Flat body and equal thickness design makes a smaller shape

2. Compact uni-body made of aviation material provides high strength, light weight and high torque ratio

3. Accuracy ±3％

4. Slim body design for easy operation in tight spaces

5. 27︒ each stroke provides high performance and speed

6. Anti-corrosive treated surface, applicable for hash environments




Power head

Model

Imperial Bolt(in)

Metric Bolt(mm)

Min.Torque(Nm)

Max.Torque(Nm)

Power Head Weight(Kg)

Power Head Range(Kg)

Output Accuracy

Repeat Accuracy

PX-2

3/4~2-3/8

19-60

266

2668

2.0

1.6-2.2

±3%

2%

PX-4

1~3- 1/8

25-80

535

5355

3.5

3.5-4.5

±3%

2%

PX-8

1-7/8~4

50- 105

1194

11943

4.5

6.7-7.8

±3%

2%

PX- 16

2-5/8~4-5/8

65- 115

2297

22975

8.3

9.5- 12.7

±3%

2%

PX-32

3- 1/8~6- 1/8

80- 155

4933

49338

12.7

25.3-27.3

±3%

2%

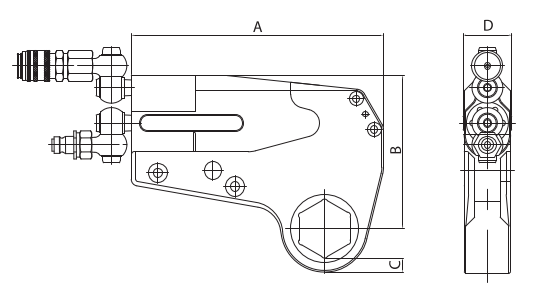

Model

A(mm)

B(mm)

The range of C(mm)

D(mm)

PX-2

144

102

9.6- 15. 1

31

PX-4

229

139

11.7- 13.6

44

PX-8

243

177

14.4-24. 1

53

PX- 16

328

193

17.3-23.3

64

PX-32

361

257

24.5-30.8

84


Wrench head

Metric

PX-2

PX-4

PX-8

PX-16

PX-32

Model

Hex Size A/F(mm)

Model

Hex Size A/F(mm)

Model

Hex Size A/F(mm)

Model

Hex Size A/F(mm)

Model

Hex Size A/F(mm)

PXL2- 19

19

PXL4-36

36

PXL8-50

50

PXL16-65

65

PXL32-80

80

PXL2-22

22

PXL4-41

41

PXL8-55

55

PXL16-70

70

PXL32-85

85

PXL2-24

24

PXL4-46

46

PXL8-60

60

PXL16-75

75

PXL32-90

90

PXL2-27

27

PXL4-50

50

PXL8-65

65

PXL16-80

80

PXL32-95

95

PXL2-30

30

PXL4-55

55

PXL8-70

70

PXL16-85

85

PXL32- 100

100

PXL2-32

32

PXL4-60

60

PXL8-75

75

PXL16-90

90

PXL32- 105

105

PXL2-36

36

PXL4-65

65

PXL8-80

80

PXL16-95

95

PXL32- 110

110

PXL2-41

41

PXL4-70

70

PXL8-85

85

PXL16- 100

100

PXL32- 115

115

PXL2-46

46

PXL4-75

75

PXL8-90

90

PXL16- 105

105

PXL32- 120

120

PXL2-50

50

PXL4-80

80

PXL8-95

95

PXL16- 110

110

PXL32- 130

130

PXL2-55

55

PXL8- 100

100

PXL16- 115

115

PXL32- 145

145

PXL2-60

60

PXL8- 105

105

PXL32- 155

155

Imperial

PX-2

PX-4

PX-8

PX-16

PX-32

Model

Hex Size A/F(in)

Model

Hex Size A/F(in)

Model

Hex Size A/F(in)

Model

Hex Size A/F(in)

Model

Hex Size A/F(in)

PXL2-3/4

3/4

PXL4- 1-7/16

1-7/16

PXL8- 1- 13/16

1- 13/16

PXL16-2-3/8

2-3/8

PXL32-3- 1/2

3- 1/2

PXL2-7/8

7/8

PXL4- 1-5/8

1-5/8

PXL8-2

2

PXL16-2-9/16

2-9/16

PXL32-3- 11/16

3- 11/16

PXL2- 1- 1/16

1- 1/16

PXL4- 1- 13/16

1- 13/16

PXL8-2-3/16

2-3/16

PXL16-2-3/4

2-3/4

PXL32-3-7/8

3-7/8

PXL2- 1-3/16

1-3/16

PXL4-2

2

PXL8-2-3/8

2-3/8

PXL16-2- 15/16

2- 15/16

PXL32-4- 1/8

4- 1/8

PXL2- 1- 1/4

1- 1/4

PXL4-2-3/16

2-3/16

PXL8-2-9/16

2-9/16

PXL16-3- 1/8

3- 1/8

PXL32-4- 1/4

4- 1/4

PXL2- 1-7/16

1-7/16

PXL4-2-3/8

2-3/8

PXL8-2-3/4

2-3/4

PXL16-3- 1/2

3- 1/2

PXL32-4-5/8

4-5/8

PXL2- 1-5/8

1-5/8

PXL4-2-9/16

2-9/16

PXL8-2- 15/16

2- 15/16

PXL16-3- 11/16

3- 11/16

PXL32-5

5

PXL2- 1- 13/16

1- 13/16

PXL4-2-3/4

2-3/4

PXL8-3- 1/8

3- 1/8

PXL16-3-7/8

3-7/8

PXL32-5-3/8

5-3/8

PXL2-2

2

PXL4-2- 15/16

2- 15/16

PXL8-3- 1/2

3- 1/2

PXL16-4- 1/8

4- 1/8

PXL32-5-3/4

5-3/4

PXL2-2-3/16

2-3/16

PXL4-3- 1/8

3- 1/8

PXL8-3- 11/16

3- 11/16

PXL16-4- 1/4

4- 1/4

PXL2-2-3/8

2-3/8



PXL16-4-5/8

4-5/8


How to choose PX Low Clearance Hydraulic Wrench

1、Choosing PX power head according to the torque

required by the application

2、Choosing PXL wrench head according to bolt nuts size required by the application

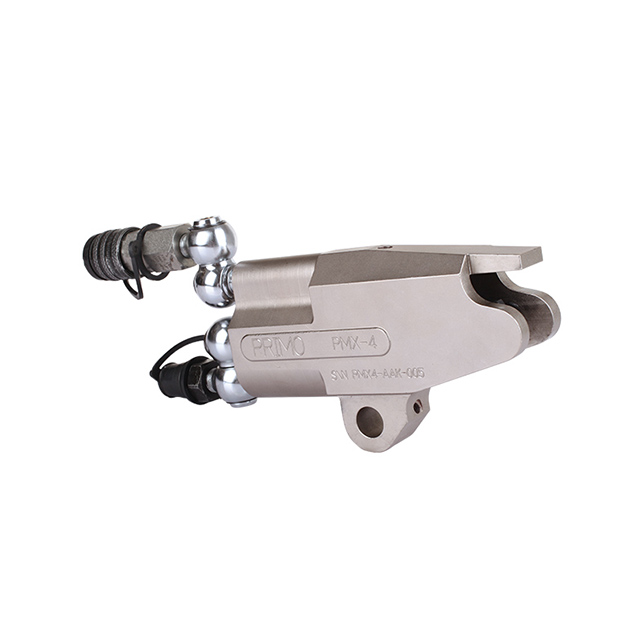

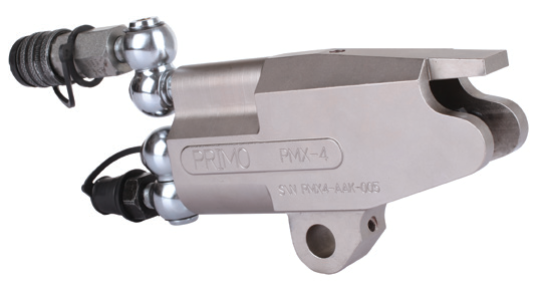

PX power head

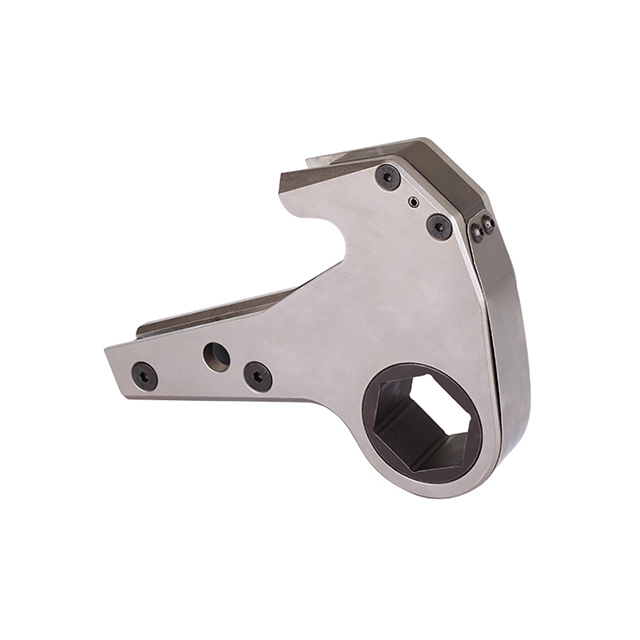

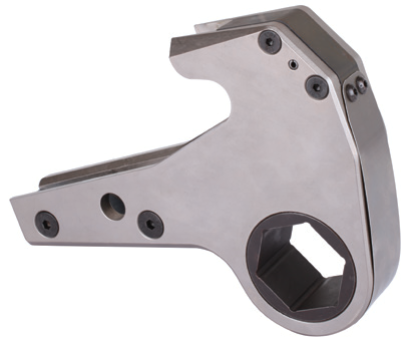

PXL wrench head
