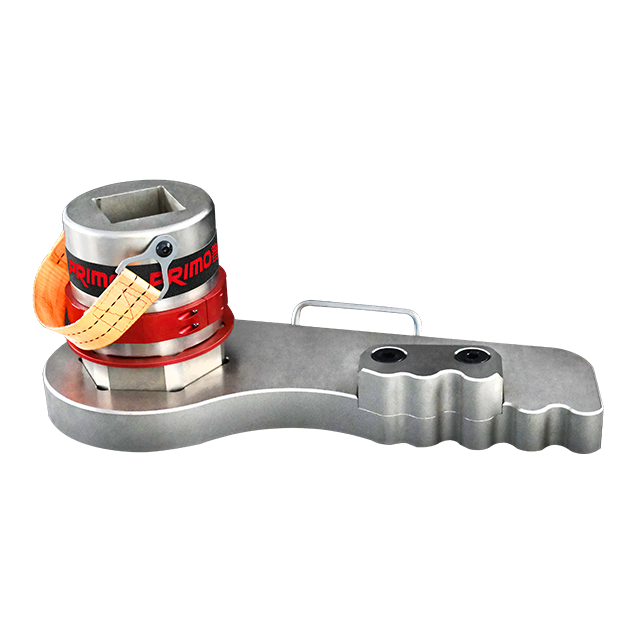

Portable Torque Test（Square Drive）
1. Suitable for the testing of most hydraulic torque wrenches
2. Split type, lightweight design, aviation aluminum shell, can be
easily carried to the site
3. Wide range, few accessories, friendly interface, strong and durable
4. The sensor adopts the multi-point calibration mode has a high
linear accuracy
5. One-button startup detection, real-time display, without secondary selection operation
6. Universal battery power supply, convenient, safe and fast

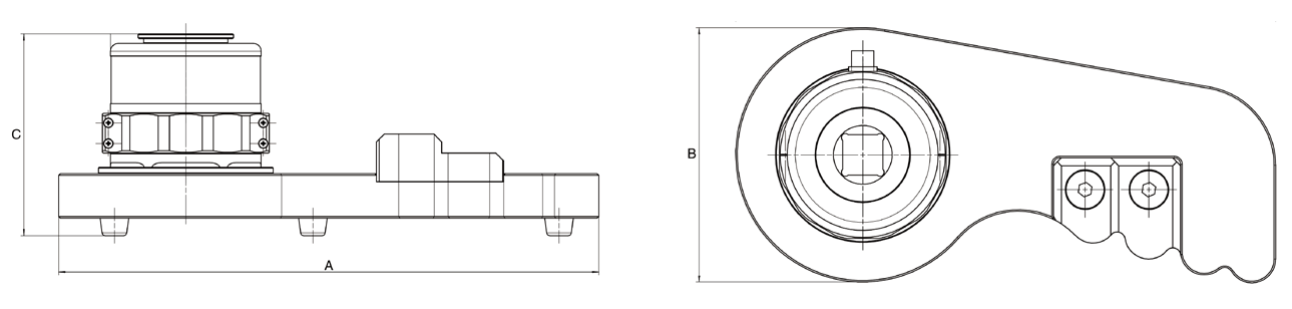

Model | Weight(kg) | Type | Torque Range(Nm) | Accuracy(FS) | Size A × B × C (mm) |
BXN18000 | 12 |
square drive | 0- 18000 |
≤0.5% | 340 × 160 × 127 |
BXN38000 | 29.6 | 0-38000 | 493 ×200 × 171 |
BXN55000 | 32 | 0-55000 | 537 ×200 × 186 |

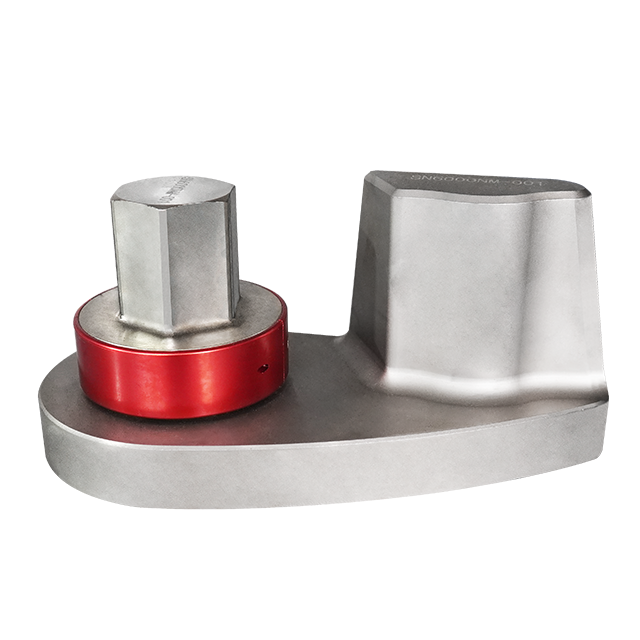

Portable Torque Test（Hollow）
1. Suitable for the testing of most hydraulic torque wrenches
2. Split type, lightweight design, aviation aluminum shell, can be
easily carried to the site
3. Wide range, few accessories, friendly interface, strong and durable
4. The sensor adopts the multi-point calibration mode has a high
linear accuracy
5. One-button startup detection, real-time display, without secondary selection operation
6. Universal battery power supply, convenient, safe and fast

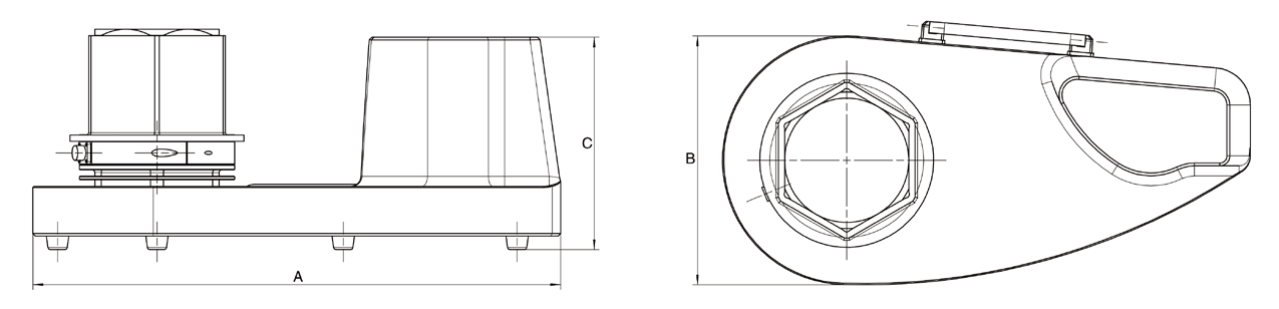

MODEL | Weight(kg) | Type | Torque Range(Nm) | Accuracy(FS) | Size A × B × C (mm) |
ZKBXN6000 | 6.6 |
Hollow | 0-6000 |
≤0.5% | 215 × 110 × 111 |
ZKBXN20000 | 20.5 | 0-20000 | 335 × 170 × 141 |
ZKBXN45000 | 39 | 0-45000 | 425 ×200 × 171 |
