SMART SOCKETS

Availability:
Quantity:
Inquire Add to Basket


智能扭矩套筒 小



Features


  • Measures the actual torque applied to the bolt, applicable to torque tools calibration

  • Measures and displays peak or real-time torque values

  • Full data collection, can be exported in XLS file

  • Real time data could be viewed on a smartphone or tablet via bluetooth

  • Accuracy ± 1%

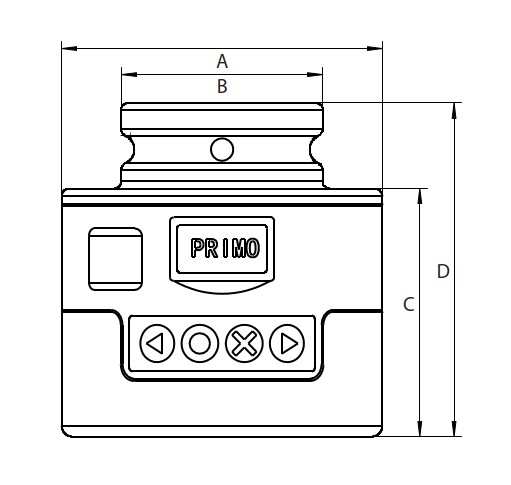

外形图


Square Hole Size (in)

Model

Torque Range (Nm)

Weight(kg)

Size    A  × B  × C × D (mm)

1

ZT25041002K

200-2000

1.1

72 ×54 ×67 ×88

ZT25046002K

ZT25050004K

400-4000

1.5

86 ×54 ×69 ×90

ZT25055004K

ZT25060004K

1- 1/2

ZT38065006K

600-6000

5.4

120 ×90 × 100 × 130

ZT38070006K

ZT38075012K

1200- 12000

5.4

120 ×90 × 100 × 130

ZT38080012K

ZT38085012K

ZT38090016K

1600- 16000

6.4

135 ×90 × 100 × 140

ZT38095016K

ZT38100016K

2- 1/2

ZT63090020K

2000-20000

9

135 × 127 × 120 × 160

ZT63095020K

ZT63100020K
