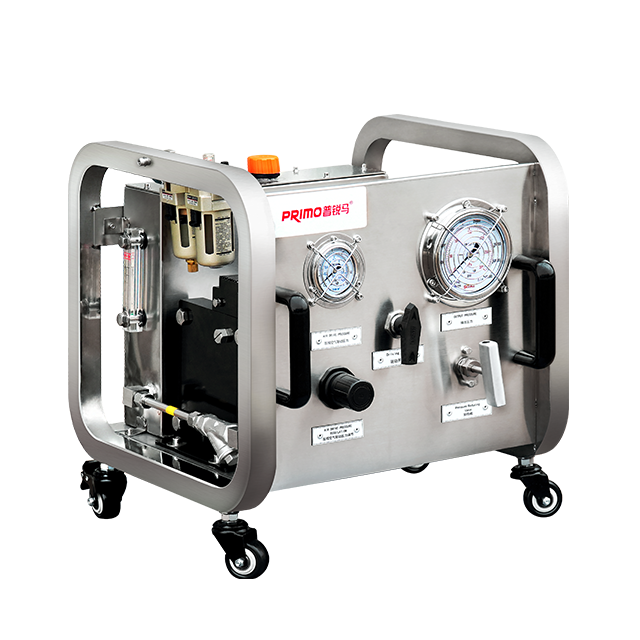

Ultra-High Pressure Air Pump

Availability:
Quantity:
Inquire Add to Basket

框架式超高压气动泵 小

Features


  • Air pressure 2-8 bar, air consumption 0.8m³/min

  • Output pressure is proportional to air supply, output pressure can be set by adjusting supply air pressure

  • The pump will automatically stop when the set pressure is reached

  • Explosion proof




Model

Working Pressure (MPa)

Pressure

Ratio

Flow rate (L/min)

Reservior(L)

Air Inlet(in)

High Pressure outlet(in)

Size(mm)

Weight(kg)

ASP150

150

240

2.8@0MPa

0.35@150MPa

7

1/2 BSP

G1/4

450 ×450 ×450

26

ASP200

200

300

2.8@0MPa

0.35@200MPa

7

1/2 BSP

G1/4

450 ×450 ×450

27

ASP300

300

400

2.8@0MPa

0.35@300MPa

7

1/2 BSP

G1/4

450 ×450 ×450

27
