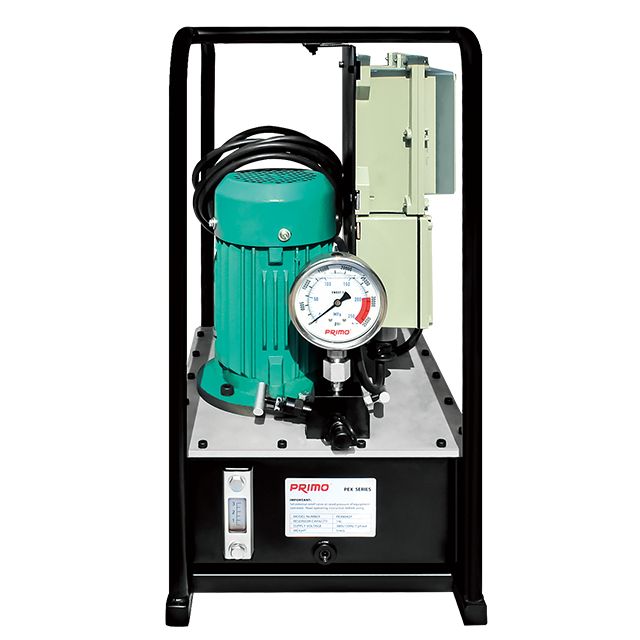

Ultra-High Pressure Explosion Proof Electric Pump

Availability:
Quantity:
Inquire Add to Basket

超高压防爆超高压泵 小

Features


  • EX dⅡBT4 three phase motor, safety, applicable to explosive environment. Large torque output and high efficiency

  • Electric control system adopts EX dⅡBT4 explosion-proof electromagnetic starter

  • Advanced double stage piston pump with stable pressure

  • Integrated pump oil circuit system, compact and durable



Model

Reservoir (L)

Power(KW)

Supply

Max.Working Pressure

(MPa)

Size A×B×C

(mm)

Flow(L/min)

Weight

(kg)

EXP- 14

14

1.1

380V/50Hz/three phase

150

430 ×330 ×660

2@5MPa,

0.3@150MPa

53
